Video: Take your Kawasaki Ultra to the Next Level with Unlimited PWC’s Full Billet Ultra X Sponsons

0
1353

The Watercraft Journal partnered with Unlimited PWC and JD’s WaterWorld to equip the latest generation Kawasaki Ultra 310 LX-S JetSki with Unlimited’s full catalog of components and add-ons. Our exclusive build series stretches across four videos, and features step-by-step installation tutorials with an exclusive look at each Unlimited component installed on our JetSki

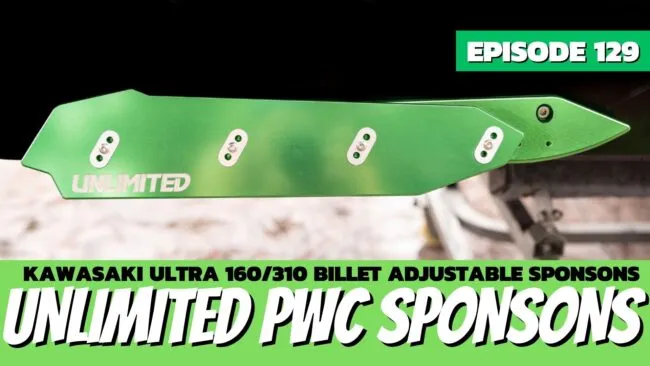

For the final stage of our build (link goes here), we install green anodized Unlimited PWC Full Billet X-Sponsons and Unlimited Billet 3-Hole washers in silver. These are the only color-matched anodized billet sponsons available on the market today for the Kawasaki Ultra 160/310 Jet Skis! The sponsons come in six different colors including green, red, silver, black, and gold.

Custom colored anodized washers complement the high-end custom look while allowing riders to take advantage of 12 unique sponson positions, which includes 3 up and down positions and 4 forwards or backwards positions. The washers also are available in six different colors including green, red, silver, black, and gold.

Installation of the Billet X Sponsons only takes a few minutes with basic tools. We first unbolt the stock plastic sponsons, and remove the OEM hardware. We next mount our new anodized billet base using the Allen bolts included in the kit.

We then install silver Unlimited Billet 3-hole washers onto the sponson blade, and then mount the blade in the center hole using four button-head Allen bolts. We initially placed the blade directly in the center of the base, but after testing various configurations, moved the blade back to the 3/4 position.

For open ocean riding and high-speed tracking through chop and cross-wakes we found the sponsons to provide great results when kept in the center position, from top to bottom, and then biased slightly towards the rear of the JetSki. Once you find your ideal positioning, make sure to apply a small drop of blue Loctite to each of the bolts to ensure they don’t loosen.

If you missed them, make sure to check out the first three parts of out of our Unlimited PWC build-series here: Our first video in the series included a complete unboxing with a presentation of each component from Unlimited’s massive catalog for the new Kawasaki Ultra 160 and 310 JetSkis!

Our second video featured installation tips for many of Unlimited’s most popular billet anodized components including their signature valve/cam cover, flush ports, ball drain valves, type VI exhaust tip, oil cap, bypass nozzle, and Unlimited’s premium green/black brick-pattern laser-cut traction mats.

Our third video the Unlimited PWC Handlebar Package that included a full installation of their Low-Down Steering Mount, green billet Middle Handlebar, Unlimited Runabout Handlebar Pad, Logo Grips with billet green lock rings, black billet Type 2 locking End Caps, green billet throttle/KSRD block-off plate, and the Unlimited Stainless steel immobilizer relocation bracket!

Visit Unlimited PWC to check out these products, as well as Unlimited’s full catalog of parts and components for Kawasaki, Yamaha, and Sea-Doo personal watercraft.
